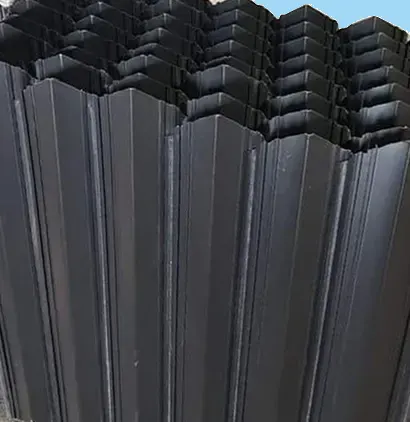

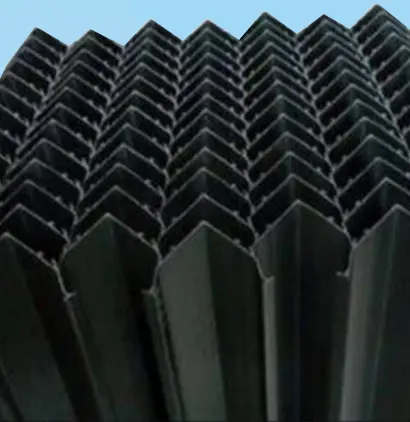

This media is made of light weight PVC which is flame resistant material and have chevron shaped self-supporting structure in a tubular form with six sides and also utilized on individual, isolated tubular channels to expand the settling capacity of water and waste water. These media easy to transport and install.
| Model | TS 120 |
|---|---|
| Plan Settling Area |
11 m²/m³ (at 60° slope) 13 m²/m³ (at 55° slope) |
| Cross Sectional Area | 120 mm x 44 mm |
| Material of Construction | PVC |
| Shape of Tube Chevron | Hexagonal Chevron |
| Fitting Arrangement | Tongue & Groove |
| Thickness | 1.1 mm (+ / - 0.1 mm) |
| Straight Height of Media | 500, 600, 750, 1000 mm |
| Maximum Continuous Working Temperature | 55 Deg. C |
| Storage | Media must be stored in a covered place with adequate ventilation |
